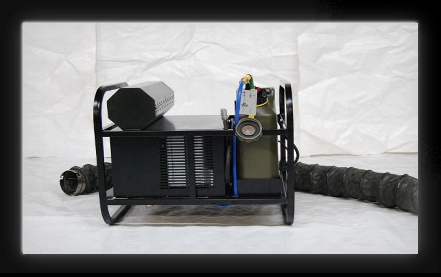

CAM-TH-52 TRUCK HEATER

SPECIFICATIONS:

RATING:

HEAT INPUT CAPACITY: 70,000 BTU
EFFICIENCY: 74%
HEAT NET OUTPUT: 52,000 BTU

RATED AIR FLOW:

420 CFM @ 0 STATIC
320 CFM @ 1.0 STATIC

FUEL TANK CAPACITY:

20 LITRES
5 US GALLLONS

FUEL CONSUMPTION:

2 LITRES/HOUR
.5 US GALLONS/HOUR

RUNNING TIME ENDURANCE:

10 HOURS OR CONTINUOUS ON EXT. SYSTEM

FUEL TYPES:

KEROSENE, #1 FUEL OIL OR #1 DIESEL, JP8, JP4, JP5, BIO FUEL MIX

POWER SUPPLY:

120V- 60HZ-AC OR 24V-DC (STANDARD)
220V-50HZ-AC OR 24V-DC (OPTIONAL)

POWER CONSUMPTION:

397 WATTS, COLD START

NOISE LEVEL AT 3 FT.:

76 DB, NO MUFFLER

MAX. OUTPUT TEMPERATURE:

240 F / 119 C, TEMP. PROTECTED

TEMPERATURE RISE:

6"

OUTPUT DUCT SIZE:

EXHAUST SIZE:

130 F

1.5'

PHYSICAL CHARACTERISITICS:

HEATER ONLY
L 27" X W 18"X H 11", WT. 44 LBS
HEATER IN FRAME
L 27 X W 21.5" X H 24.5", WT. 125 LBS
